Product Code --- DASA-3131 Fixed Site DF Antenna

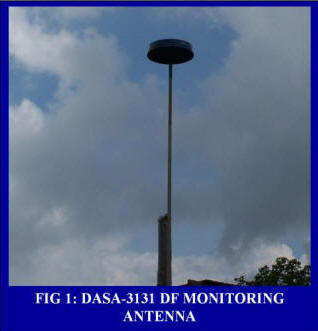

The antenna should be affixed on a mast - normally atop a building or a pole. The controls are mounted close by, ideally in an elevator shaft or somewhere secure, dry and close to the antenna.  The antenna is a dual band annular slot type enclosed in a vacuum ­formed, ruggedized, and lightweight abrasive resistant plastic cover with UV protection. The antenna is intended to be mounted on a 1.5” metal pipe (2’ aluminum section provided).

This antenna is usually a part of the AADF-3131 Fixed Site DF System, but is available separately as well.

Electrical Specifications

Frequency Coverage: 20 MHz - 1.0 GHz
Azimuth Coverage:    360° in azimuth

DF Technique:     Watson-Watt Phase
Antenna Type:  Dual Annular Slot

Bearing Accuracy:     6° rms
Polarization:      Vertical


Mechanical Specifications

Antenna Dimensions:

Diameter  24", Height: 5",
Weight: 35 lbs

Environments:

Operating Temp.: -40°C to +60°C,
Storage Temp.: -40°C to +70°C

Ordering Information    Model No. DASA-3131
Printed in U.S.A. Copyright 9/1/2010
 Specifications subject to change without notice
